Power Challenges in Smart Grid and Energy Storage Applications: A Power Supply Selection Guide from 20W to 1000W

As energy transition and renewable technologies continue to evolve, Smart Grids and Energy Storage Systems (ESS) are rapidly becoming critical pillars of global energy infrastructure. At the heart of these systems lie power solutions that must be reliable, efficient, and capable of withstanding extreme environmental conditions. Selecting the right power product—especially in the 20W to 1000W range—plays a decisive role in ensuring system stability and long-term performance.

☑ Unique Power Requirements for Smart Grid and ESS Applications

Power supplies used in smart grid and ESS environments face unique challenges:

• High Surge Withstand Capability: Equipment connected to distribution networks must meet OVC III or OVC IV surge protection levels.
• Long-Term Stability: With 24/7 operation common in ESS, power supply MTBF ratings and thermal management are critical.
• Extreme Environmental Resilience: Outdoor cabinets, high-temperature, sub-zero, and high-altitude locations demand superior environmental adaptability.

☑ Four Key Criteria for Selecting Power Supplies

• Flexible Output Voltage & Power Ranges

  Outputs should include 12V, 24V, and 48V with ±5% adjustability to accommodate system fine-tuning. Choose from 20W, 40W, 150W, 500W, or 1000W depending on load needs to optimize cost and efficiency.

• High Efficiency & Low No-Load Power Consumption

  Efficiency above 90% helps reduce thermal load and power loss. For smart meters and IoT standby devices, <0.1W no-load consumption is especially valuable.

• Certifications & Insulation

  Products should be certified to UL / IEC / EN 62368-1, 60335-1, 61558, and offer insulation ratings of 4000VAC or higher for safety and compliance.

• Environmental & Reliability Indicators

  Operating temperature should range from at least -40°C to +85°C. Support for 5000m altitude and EN 55032 Class B EMI compliance (without external filters) help streamline design and reduce costs.

☑ Smart, Safe & Durable – Built-In Protection Matters

ARCH Electronics offers a broad portfolio of AC-DC power modules and switching power supplies tailored to these demanding applications. Key protection features include:

• Over Voltage Protection (OVP) – Automatically cuts output during abnormal voltage surges.
• Over Current Protection (OCP) – Prevents overheating and failure by limiting overload.
• Short Circuit Protection (SCP) – Immediately disables output in case of output shorting.
• Over Power Protection (OPP) – Regulates output beyond rated capacity to ensure stability.
• Over Temperature Protection (OTP) – Shuts down when internal temperature exceeds safety thresholds.

These features allow real-time detection and rapid response to anomalies—especially crucial for unattended systems like smart grids and ESS—enhancing safety, reliability, and product life.

☑ Power Range Application Scenarios & Recommended Products

•   ♠ 20W～150W

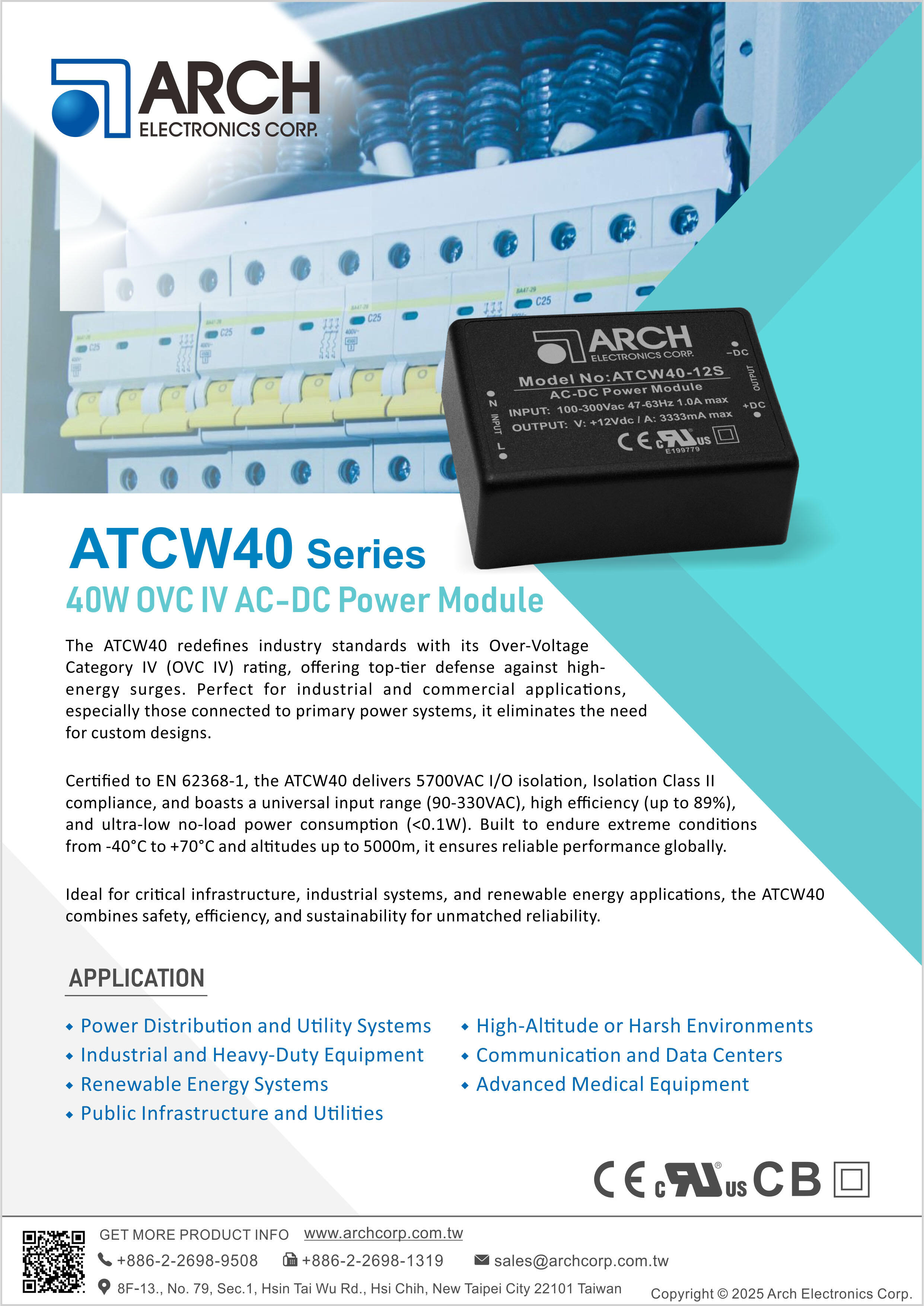

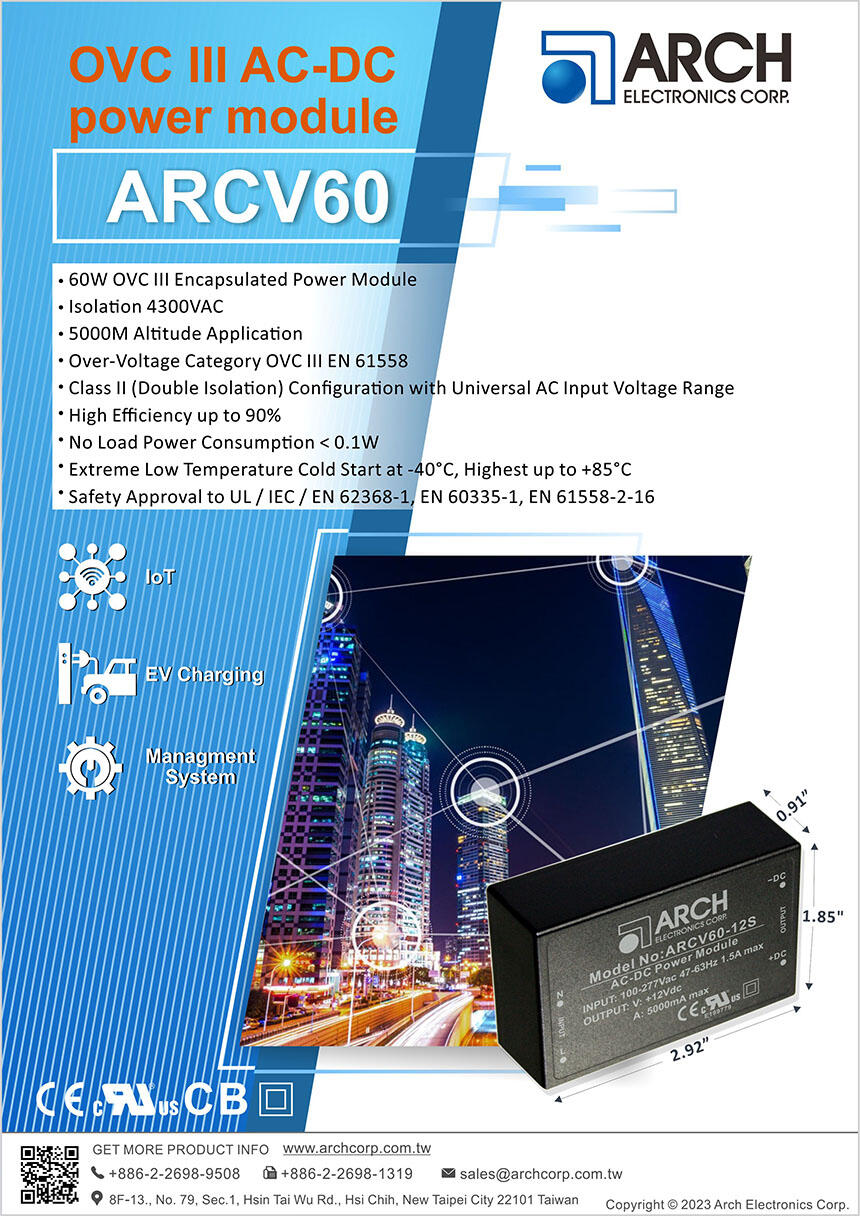

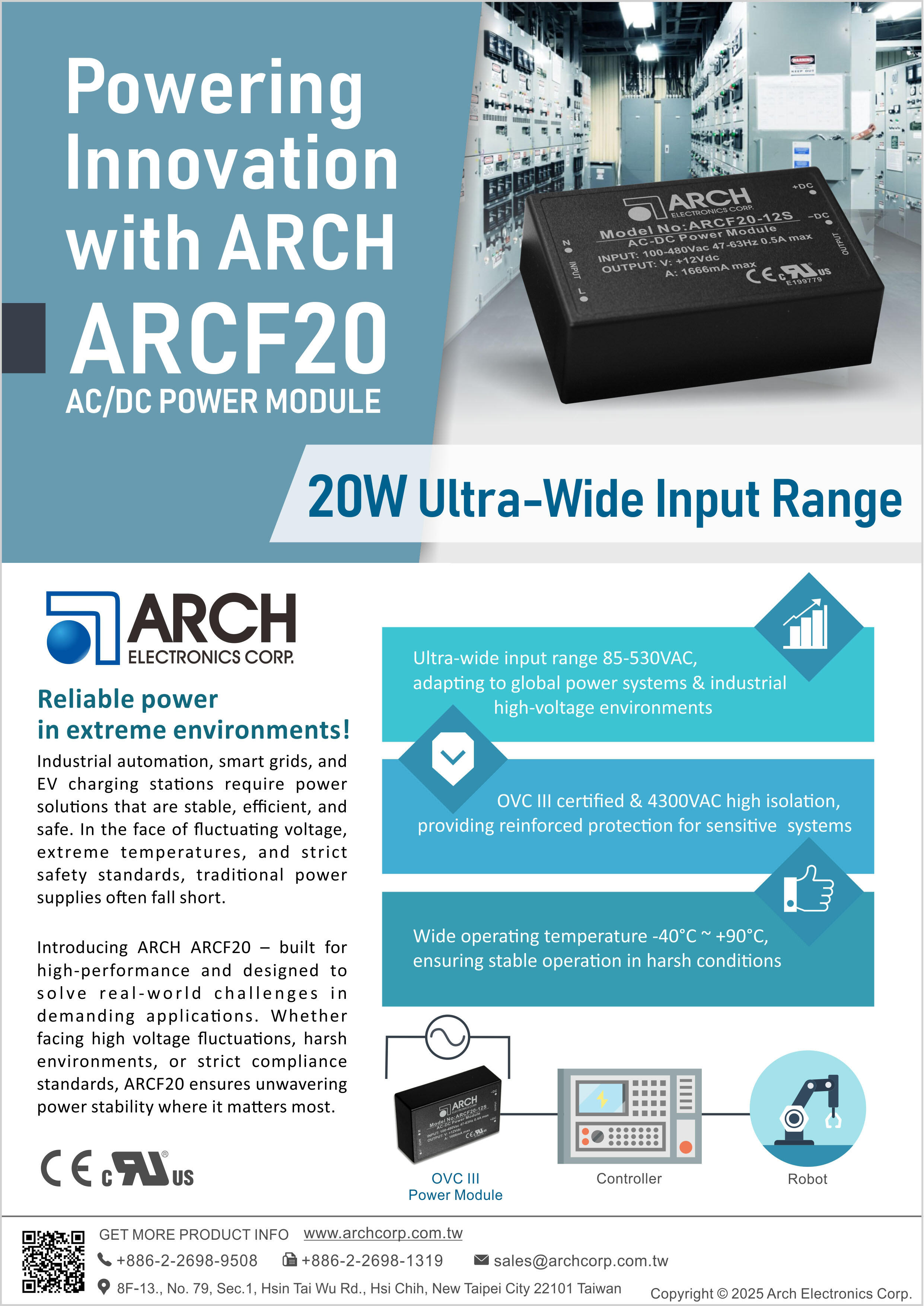

  Recommended: ARCF20、ATCW40、ARCV60、AJCV150
  Features: OVC III/IV support, compact size, <0.1W no-load, EMC Class B compliance
  Applications: Smart meters, sensor nodes, microcontrollers, energy gateways

•   ♠ 150W～500W

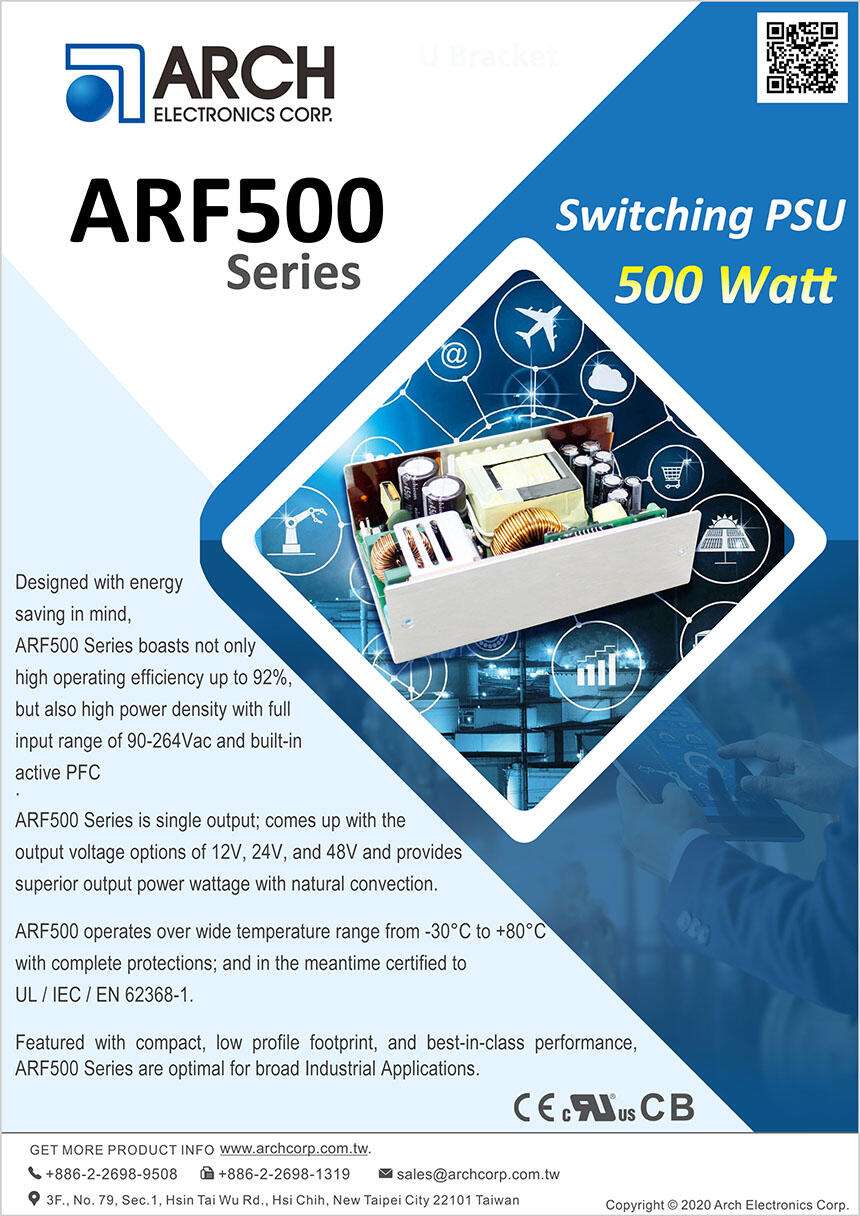

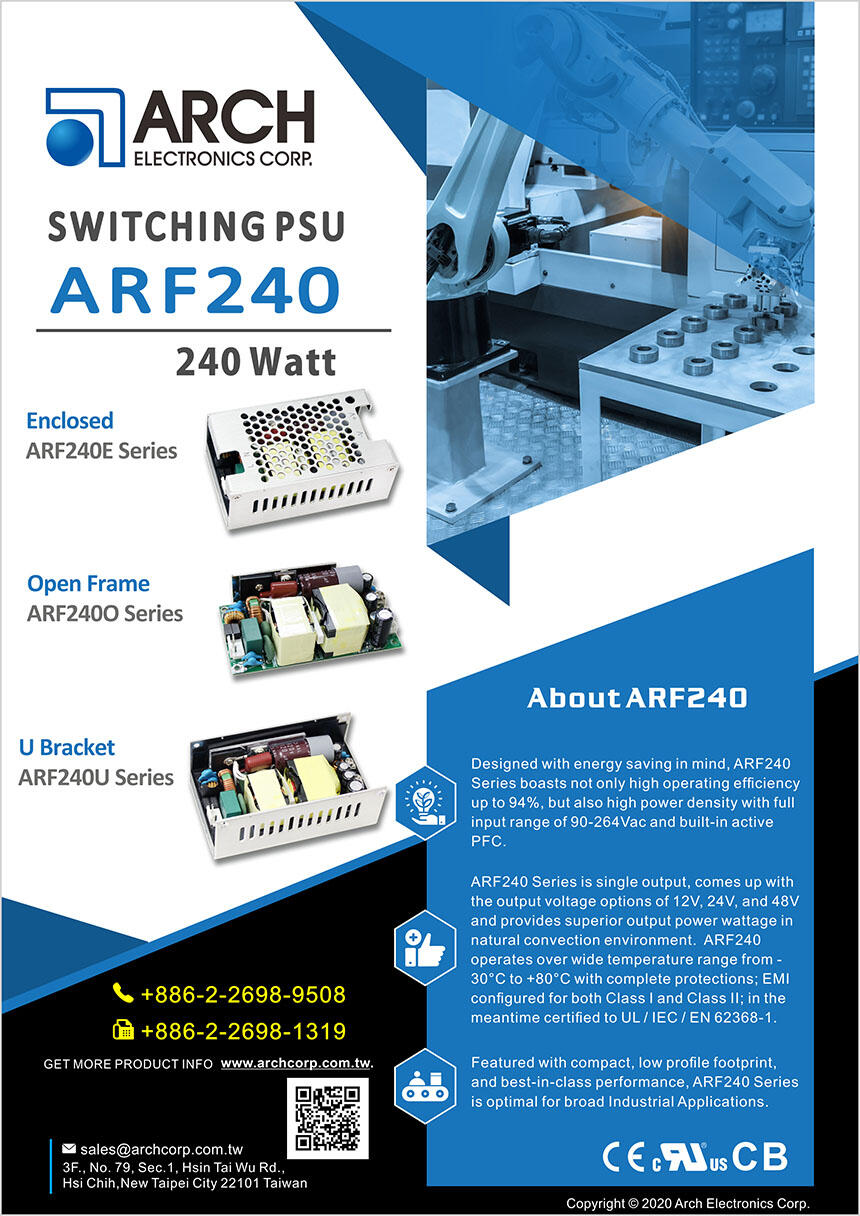

  Recommended: ARF240、ARF500
  Features: Conduction cooling, semi-potted rugged design, PFC >0.9, EMI Class B
  Applications: Edge computing devices, mid-size storage cabinets, energy monitors

•   ♠ 50W～1KW

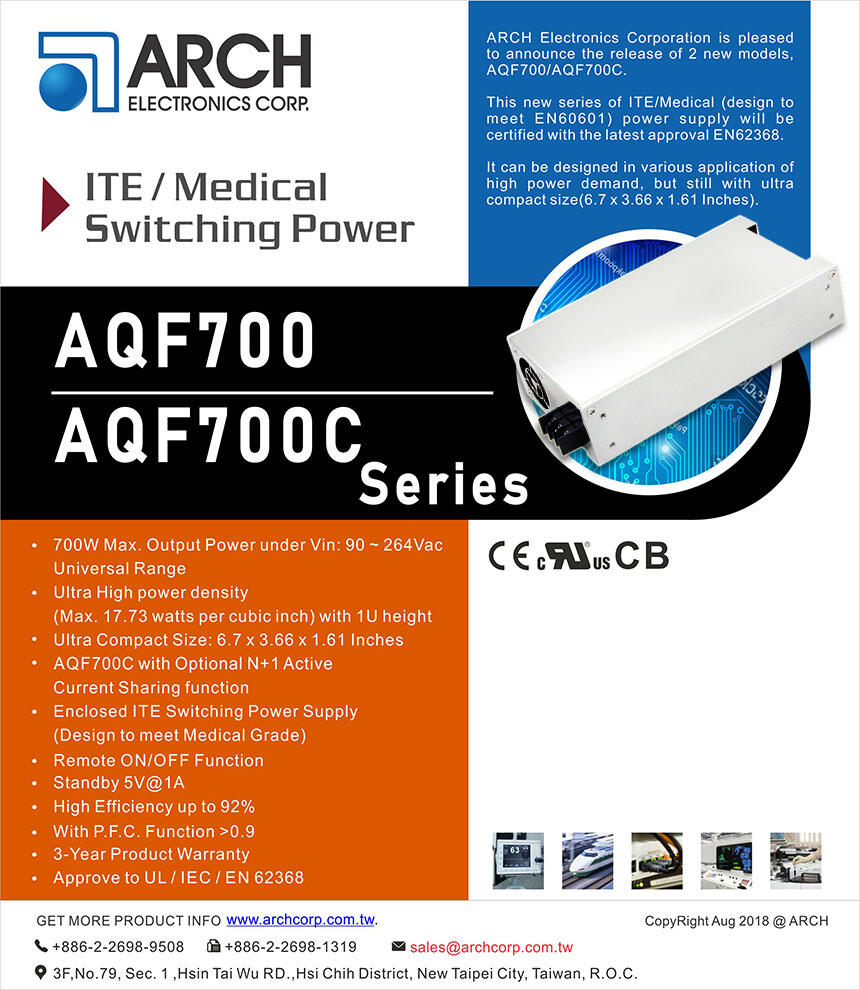

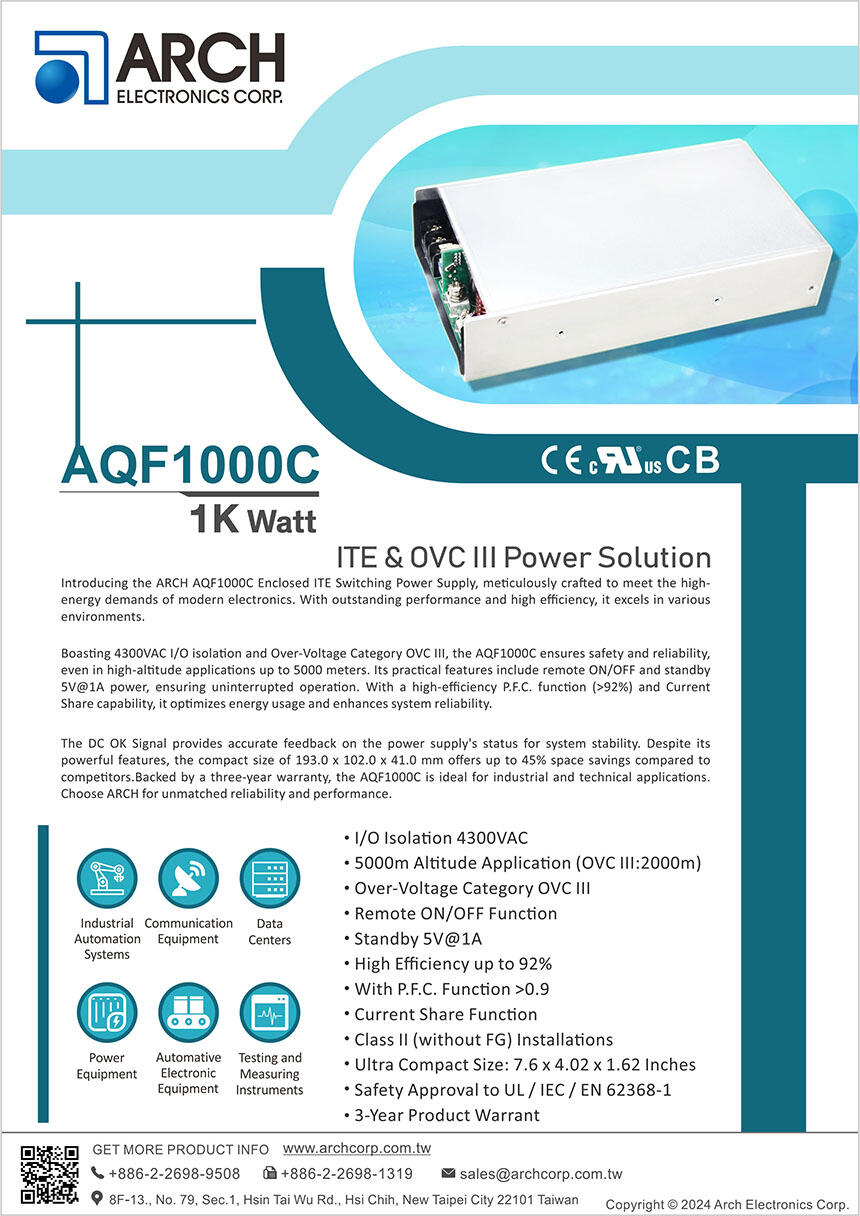

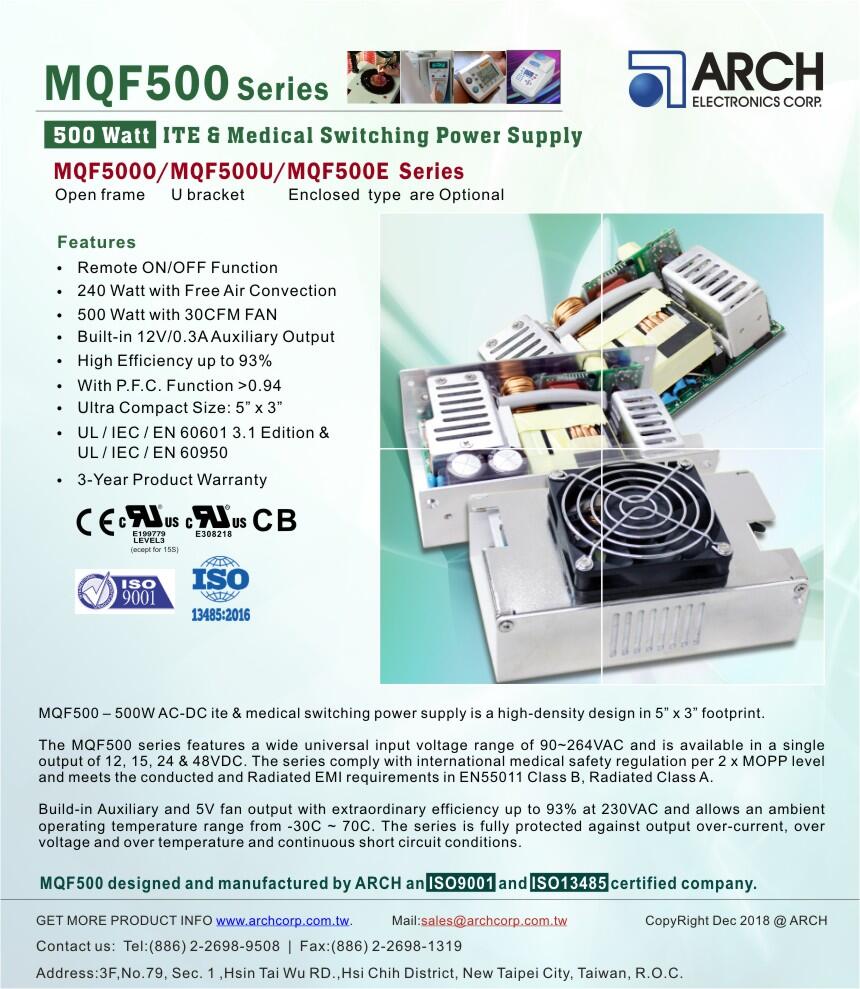

  Recommended: AQF700C、AQF1000C、MQF500
  Features: Current sharing, remote ON/OFF, reinforced isolation >4000VAC
  Applications: Large smart grid nodes, distributed ESS, EV infrastructure

☑ Looking for the ideal power solution for your next project?

Discover how ARCH can empower your designs with high-performance, reliable, and efficient power solutions. Explore our product range or contact us today to power your innovation with confidence.

☑ Choosing the Right Power Supply Boosts System Performance

In smart grid and energy storage systems, power modules are more than just energy sources—they are critical to safety, stability, and energy efficiency. ARCH Electronics offers a full spectrum of solutions from 20W to 1000W, featuring OVC III/IV compliance, semi-potted designs, high efficiency, ultra-low standby consumption, and integrated protection. Empower your designs with smart, safe, and scalable energy solutions from ARCH.
