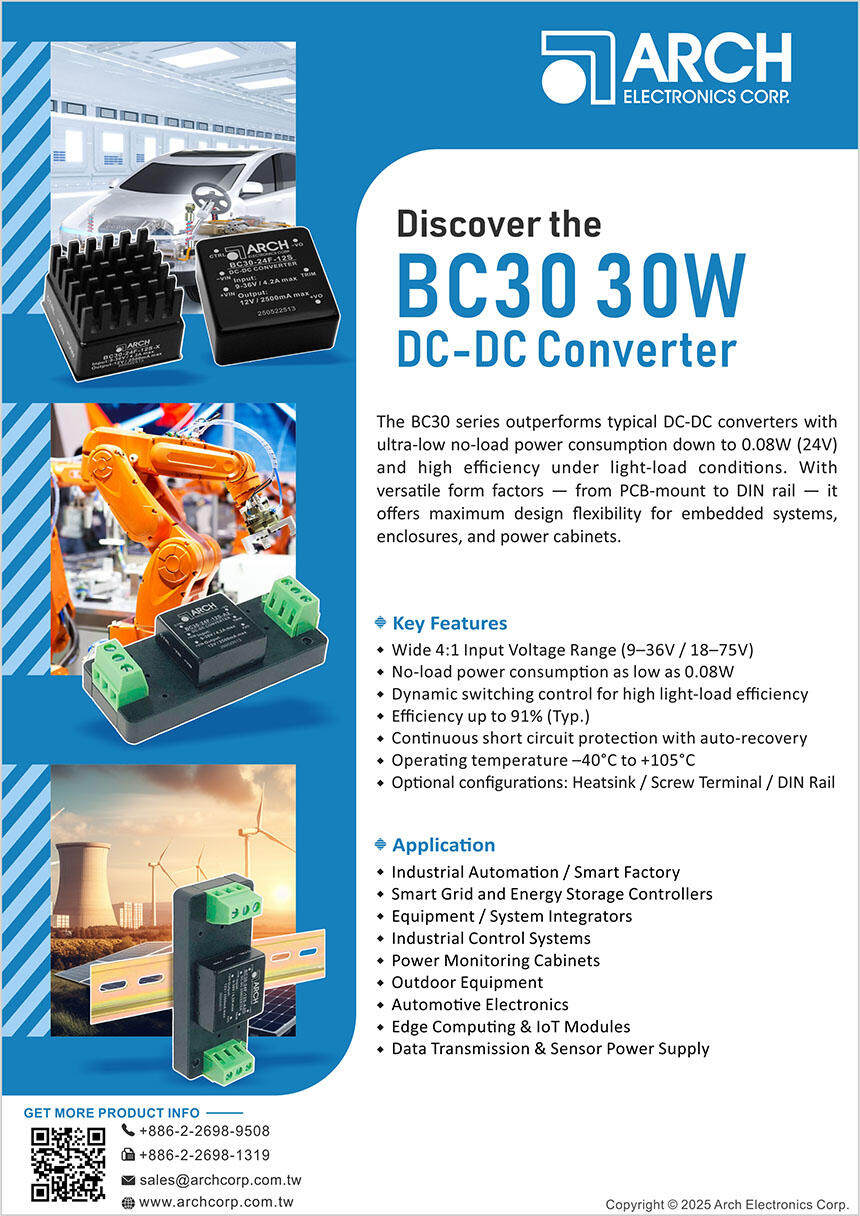

NEW
BC30
Series
DC-DC Converters
30 Watt
Size: 1.0" x 1.0" x 0.492"
I/P: 9~36 / 18 ~75 VDC
O/P:
3.3, 5, 12, 15, 24 VDC
I/O Isolation: 1500VDC
Operating Temp: -40~ +105°C
KEY FEATURES
| ◆ | Wide Input Voltage range (4:1) | |||
| ◆ | Efficiency up to 91%(typ.) | |||
| ◆ | Continuous Short Circuit Protection, Auto-recovery | |||
| ◆ | Input Under Voltage Protection, Output Over Voltage, Short Circuit & Over Current Protections | |||
| ◆ | Various package options are available: With Heatsink / Screw Terminal / DIN Rail Mounting Options | |||
| ◆ | Good EMC Performance | |||
| ◆ | International Standard Pin-Out | |||
| ◆ | Wide Operating Temperature: -40°C~+105°C with derating | |||
| ◆ | I/O Isolation: 1500VDC | |||
| ◆ | 3-Year Product Warranty | |||
ELECTRICAL CHARACTERISTICS
| Package | ||
| BC30-xF-xS: | Module | |
| BC30-xF-xS-X: | With Heatsink Module | |
| BC30-xF-xS-A2: | Screw Terminal for Option without Heatsink | |
| BC30-xF-xS-XA2: | Screw Terminal for Option with Heatsink | |
| BC30-xF-xS-A2D: | Din Rail Kit for Option without Heatsink | |
| BC30-xF-xS-XA2D: | Din Rail Kit for Option with Heatsink | |
| Dimensions | ||
| BC30-xF-xS: | 25.4 x 25.4 x 12.5 mm 1.0 x 1.0 x 0.492 inches | |
| BC30-xF-xS-X: | 25.4 x 25.4 x 18.0 mm 1.0 x 1.0 x 0.708 inches | |
| BC30-xF-xS-A2: | 76.0 x 31.5 x 21.3 mm 2.99 x 1.24 x 0.838 inches | |
| BC30-xF-xS-XA2: | 76.0 x 31.5 x 26.0 mm 2.99 x 1.24 x 1.023 inches | |
| BC30-xF-xS-A2D: | 76.0 x 31.5 x 26.0 mm 2.99 x 1.24 x 1.023 inches | |
| BC30-xF-xS-XA2D: | 76.0 x 31.5 x 30.8 mm 2.99 x 1.24 x 1.212 inches | |
| ■ | Please refer to the PDF file published on the web site as the final version. | |||
| ■ | We reserve the right to make alterations in the product materials and specifications without prior notification and consent to improve reliability, function or design or otherwise. | |||
