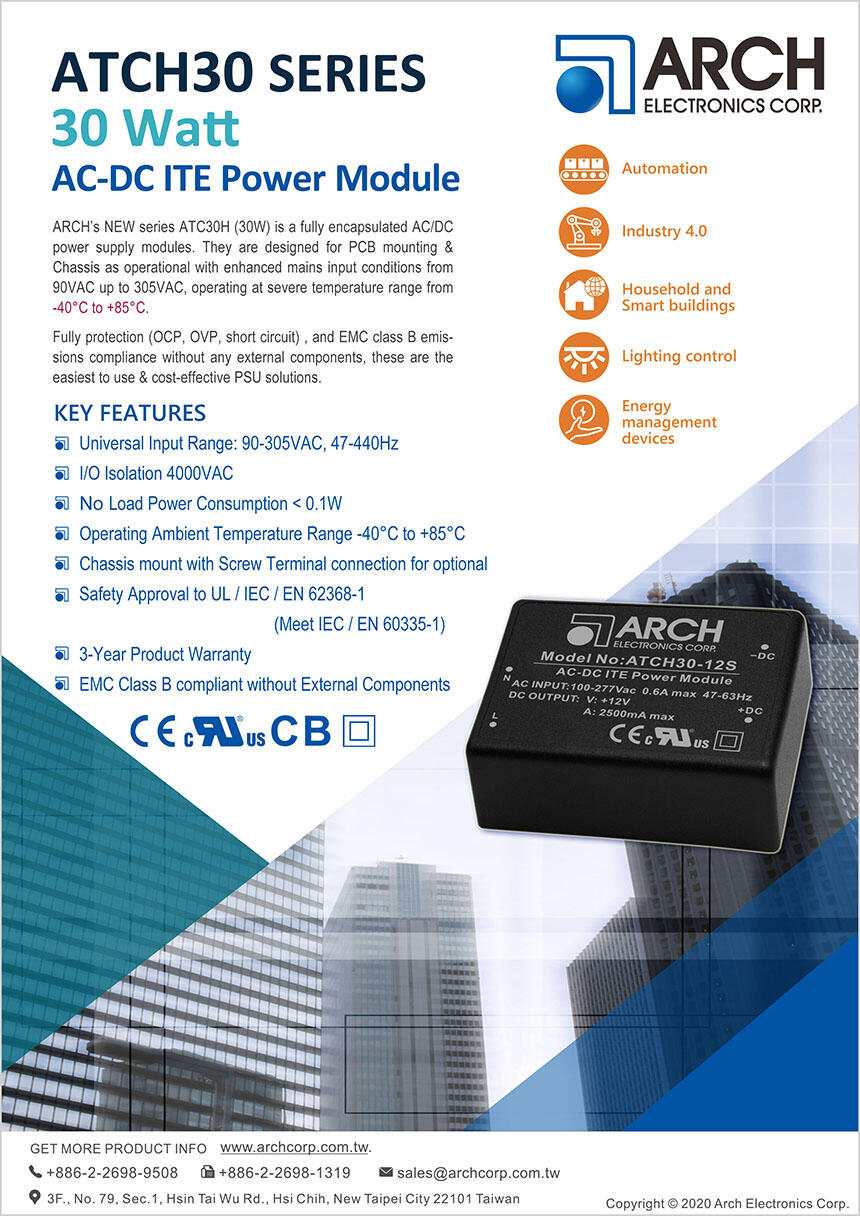

ATCH30
Series
AC-DC ITE Power Module
AC-DC Household Power Module
30 Watt
Size: 2.53" x 1.78" x 0.85"
I/P: 90~305VAC
O/P: 5.1, 12, 15, 24 VDC
I/O Isolation: 4000VAC
Operating Temp: -40~ +85°C
KEY FEATURES
| ◆ | Ultra Compact Power Module for PCB Mountable | |||
| ◆ | Universal Input Range 90-305VAC | |||
| ◆ | Low No-Load Power Consumption < 0.1W | |||
| ◆ | Cooling by free air convection | |||
| ◆ | Wide Operating Temperature: -40°C~+85°C with derating | |||
| ◆ | Operating attitude 5000m (UL / IEC / EN 62368-1) | |||
| ◆ | High Efficiency up to 88% | |||
| ◆ | I/O Isolation: 4000VAC | |||
| ◆ | Screw Terminal for Option | |||
| ◆ | EMC Compliant without External Components | |||
| ◆ | Safety Approval to UL / IEC / EN 62368-1, IEC / EN 60950-1, TUV IEC / EN 60335-1, TUV IEC / EN 61558-2-16 | |||
| ◆ | 3-Year Product Warranty | |||
ELECTRICAL CHARACTERISTICS
| Package | Module |
| Dimensions | 64.3 x 45.1 x 21.7 mm 2.53 x 1.78 x 0.85 inches |
| No Load Power | <0.1W |
| Line Regulation | ±1% |
| Load Regulation | 5.1S:±3% 12S~24S:±2% |
| Ripple and Noise | 5.1S:120mV 12S,15S:150mV 24S:240mV |
| Agency Approvals | |
| UL / IEC / EN 62368-1, IEC / EN 60950-1, IEC / EN 60335-1 (A2 Series N/A), IEC / EN 61558-2-16 (A2 Series N/A) | |
| EMI | EN 55032 Class B |
| EMS | EN 55035 |
| ■ | Please refer to the PDF file published on the web site as the final version. | |||
| ■ | We reserve the right to make alterations in the product materials and specifications without prior notification and consent to improve reliability, function or design or otherwise. | |||
