Compact 150W Power Module Built for Space-Sensitive Industrial Applications

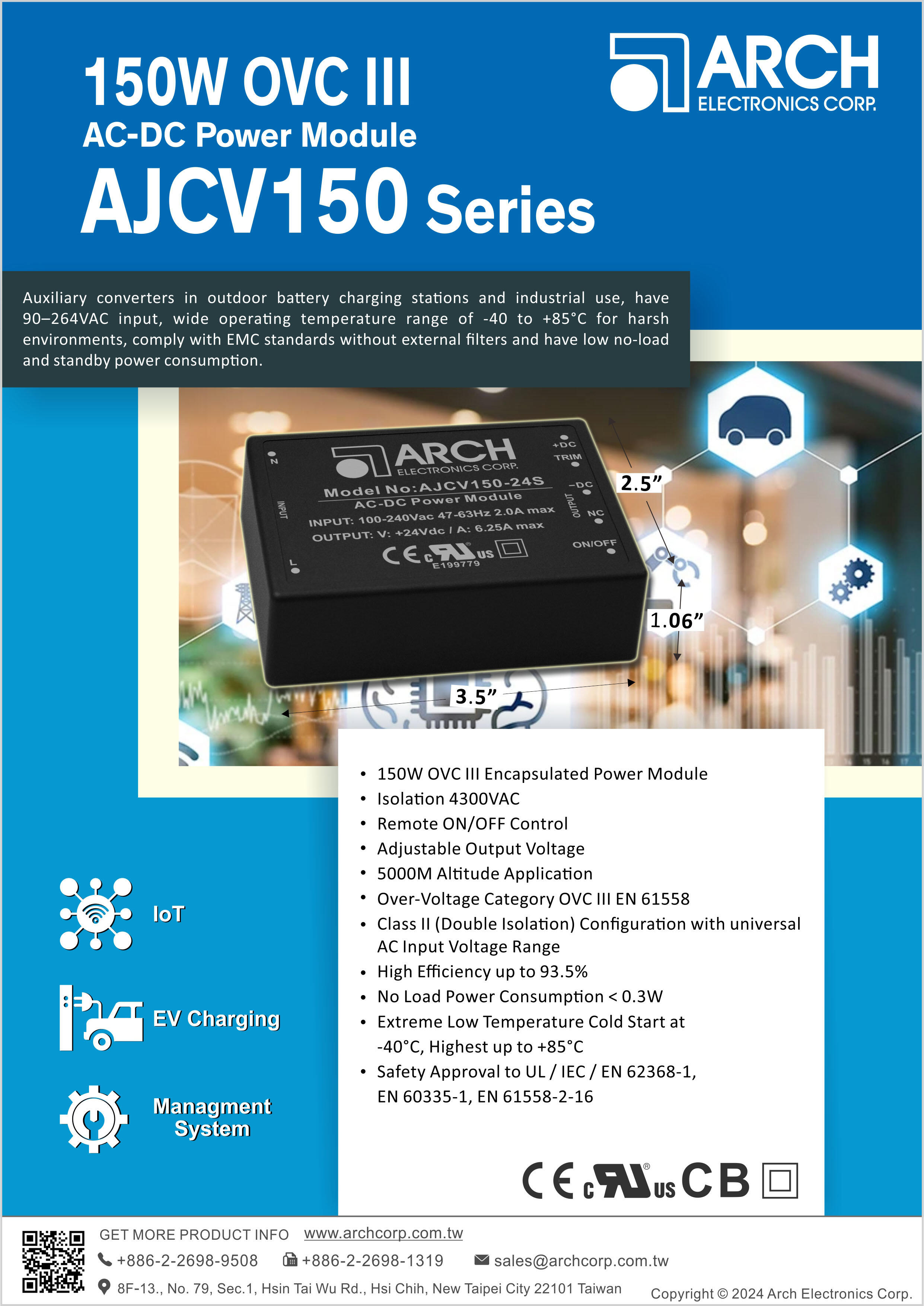

Discover the AJCV150: A High-Efficiency, Compact 150W Power Module Built for Space-Sensitive Industrial Applications

As devices become smaller and more multifunctional, the demands on industrial power supply solutions are rapidly increasing. Traditional switching power supplies, though capable of high output power, often face challenges with integration due to their size. ARCH Electronics' AJCV150 Series 150W AC-DC power module overcomes these limitations by offering a compact, high-power solution designed specifically for space-constrained applications such as smart factories, automation control, and energy systems.

☑ Compact Size, Proven Reliability

Measuring just 89 x 63.5 x 27.6 mm, the AJCV150 AC-DC module features a flame-retardant UL94V-0 rated plastic case with reinforced insulation and shock resistance—ideal for embedded systems. With remote ON/OFF control functionality and 4300VAC reinforced insulation, it complies with EN 62368-1, 60335-1, and 61558 standards for safe isolation. The module is available in 12V / 24V / 48V output options with ±5% adjustment, ensuring flexibility for diverse system requirements.



☑ Designed for Harsh Industrial Environments

The AJCV150 AC-DC power module supports a wide operating temperature range of –40°C to +85°C, making it suitable for extreme climates and fanless cooling environments. Certified to IEC 60068 standards, it offers vibration and shock resistance, and supports OVC III applications up to 5000 meters in altitude. These features make it especially well-suited for deployment in 5G communication equipment, power control cabinets, remote sensing nodes, and smart manufacturing systems—applications that demand high environmental resilience and power stability.



☑ Efficiency Meets Integration

With a no-load power consumption of less than 0.3W, the AJCV150 power module is well-suited for always-on applications and contributes to energy-saving goals. It also features remote ON/OFF control for smart power management. The module complies with EN55032 Class B EMI standards without requiring external filters, simplifying the design process and lowering BOM costs.



☑ AJCV150 150W Compact Power Module – Potential Application Scenarios

  • Scenario 1: Smart Manufacturing Equipment Control Modules
  • Scenario 2: Power Monitoring Cabinets and EV Charging Equipment Modules
  • Scenario 3: Edge Communication and Remote IoT Devices



☑ Why Choose a Power Module Over a Traditional Power Supply?

Unlike traditional metal-enclosed PSUs, the AJCV150 modular design offers clear advantages in integration and size.

FeaturePower Module (e.g., AJCV150)Traditional Switching Power Supply
InstallationBoard-mount (solder or pin)Chassis mount (screw type)
SizeCompact, ideal for dense layoutsBulky with housing and terminals
CoolingNatural convection or conductionTypically fan-cooled
IntegrationHigh integration, reduces wiring and mounting effortRequires more space and cabling
Design FlexibilityModular deployment, faster design turnaroundMore suited for centralized power setups
EMI/EMCBuilt-in filtering meets EN55032 Class B without extrasAdditional EMI planning often required



This means even in the mid-to-high 150W power range, system designers can enjoy the structural and space-saving benefits of modular power—only from ARCH.



☑ Smart Power Choice for Efficiency, Safety, and Flexibility

The AJCV150 isn’t just a power module—it’s a key component for modern industrial system designers who need efficiency, flexibility, and high integration. Upgrade your power architecture today with ARCH Electronics’ AJCV150 power module and bring enhanced stability and performance to your industrial automation systems.
