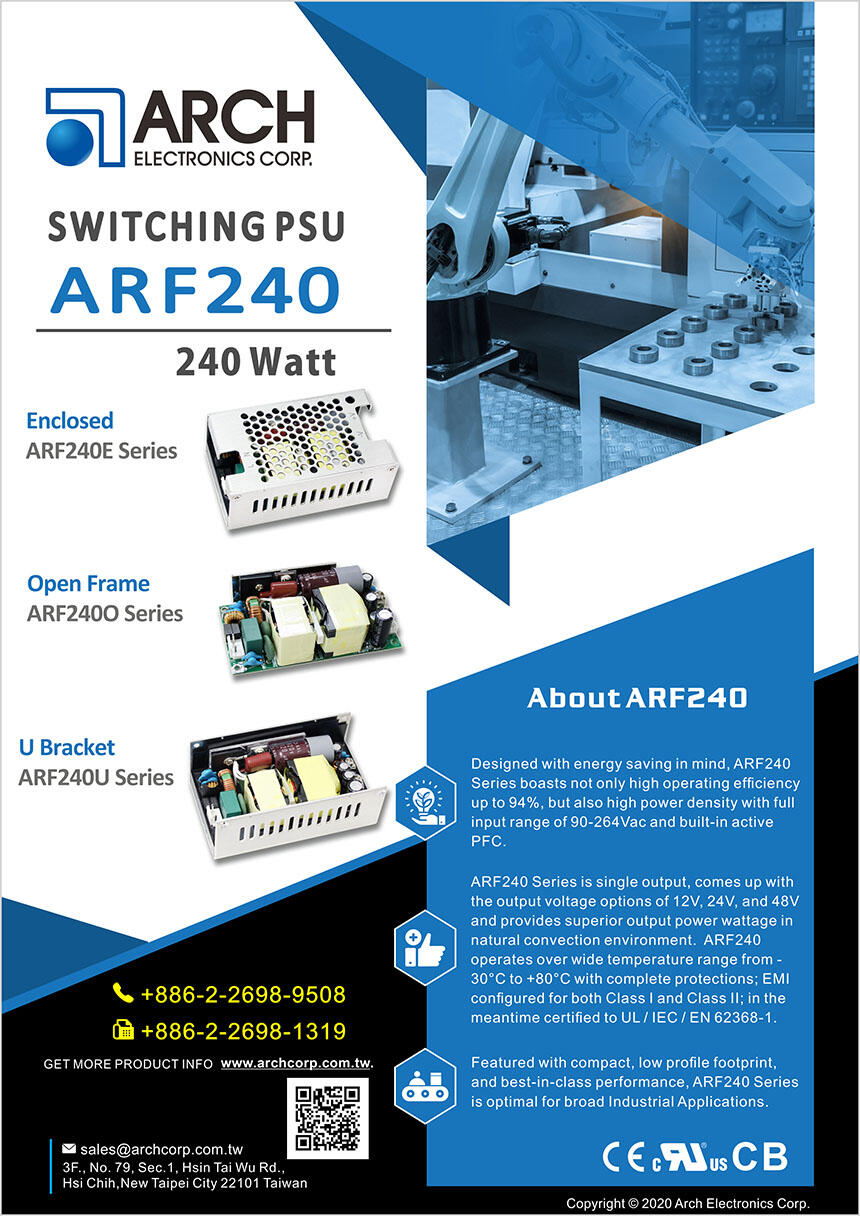

ARF240 Series

 240 Watt



Designed with energy saving in mind, ARF240 Series boasts not only high operating efficiency up to 94%, but also high power density with full input range of 90-264Vac and built-in active PFC..



ARF240 Series is single output, comes up with the output voltage options of 12V, 24V, and 48V and provides superior output power wattage in natural convection environment. ARF240 operates over wide temperature range from -30°C to +80°C with complete protections; EMI configured for both Class I and Class II; in the meantime certified to UL / IEC / EN 62368-1.



Featured with compact, low profile footprint, and best-in-class performance, ARF240 Series is optimal for broad Industrial Applications.
