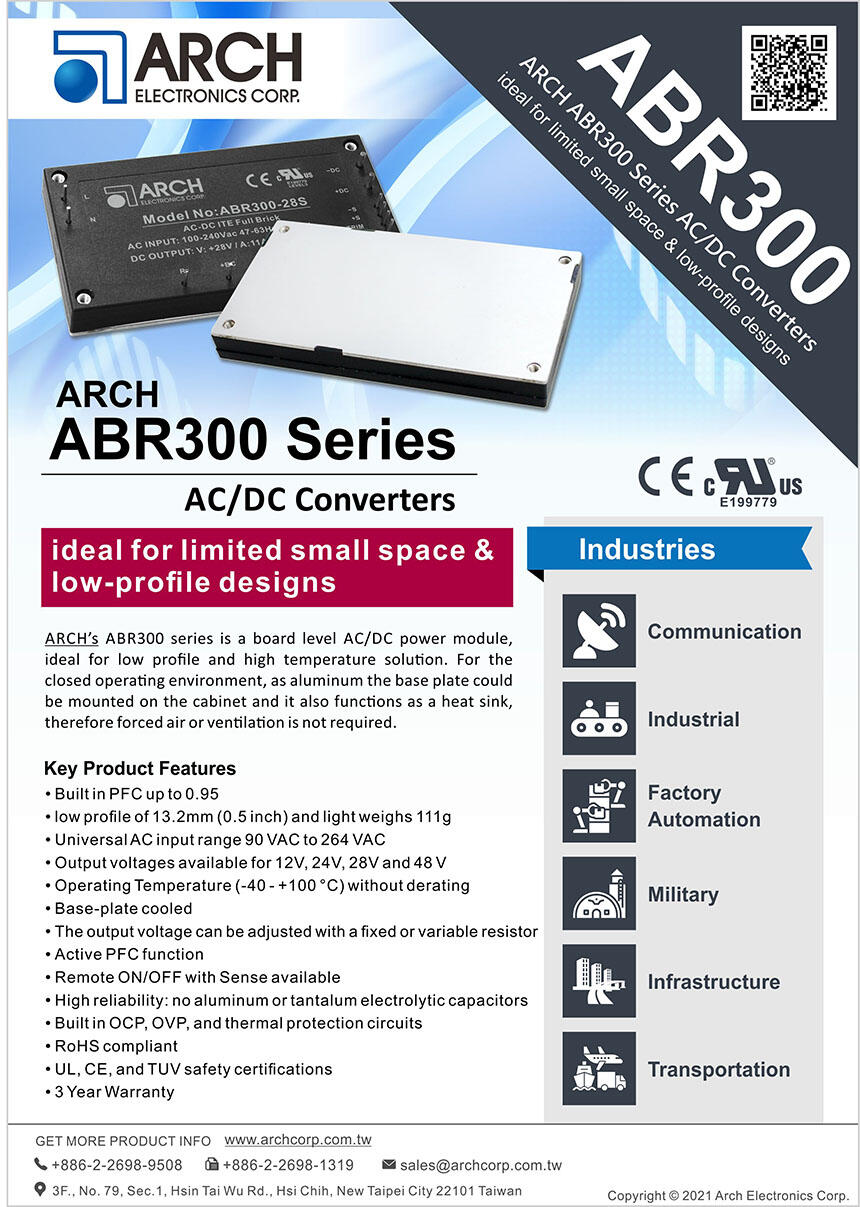

ABR300 Series

 300 Watt



 Iideal for small space, low-profile designs

ARCH’s ABR300 series is a board level AC/DC power module, ideal for low profile and high temperature solution. For the closed operating environment, as aluminum the base plate could be mounted on the cabinet and it also functions as a heat sink, therefore forced air or ventilation is not required.



-- Features --

  • Built in PFC up to 0.95
  • low profile of 13.2mm (0.5 inch) and light weighs 111g
  • Universal AC input range 90 VAC to 264 VAC
  • Output voltages available for 12V, 24V, 28V and 48 V
  • Operating Temperature (-40 - +100 °C) without derating
  • Base-plate cooled
  • The output voltage can be adjusted with a fixed or variable resistor
  • Active PFC function
  • Remote ON/OFF with Sense available
  • High reliability: no aluminum or tantalum electrolytic capacitors
  • Built in OCP, OVP, and thermal protection circuits
  • RoHS compliant
  • UL, CE, and TUV safety certifications
  • 3 Year Warranty



-- Industries --

  • Communication
  • Industrial
  • Factory automation
  • Military
  • Infrastructure
  • Transportation
