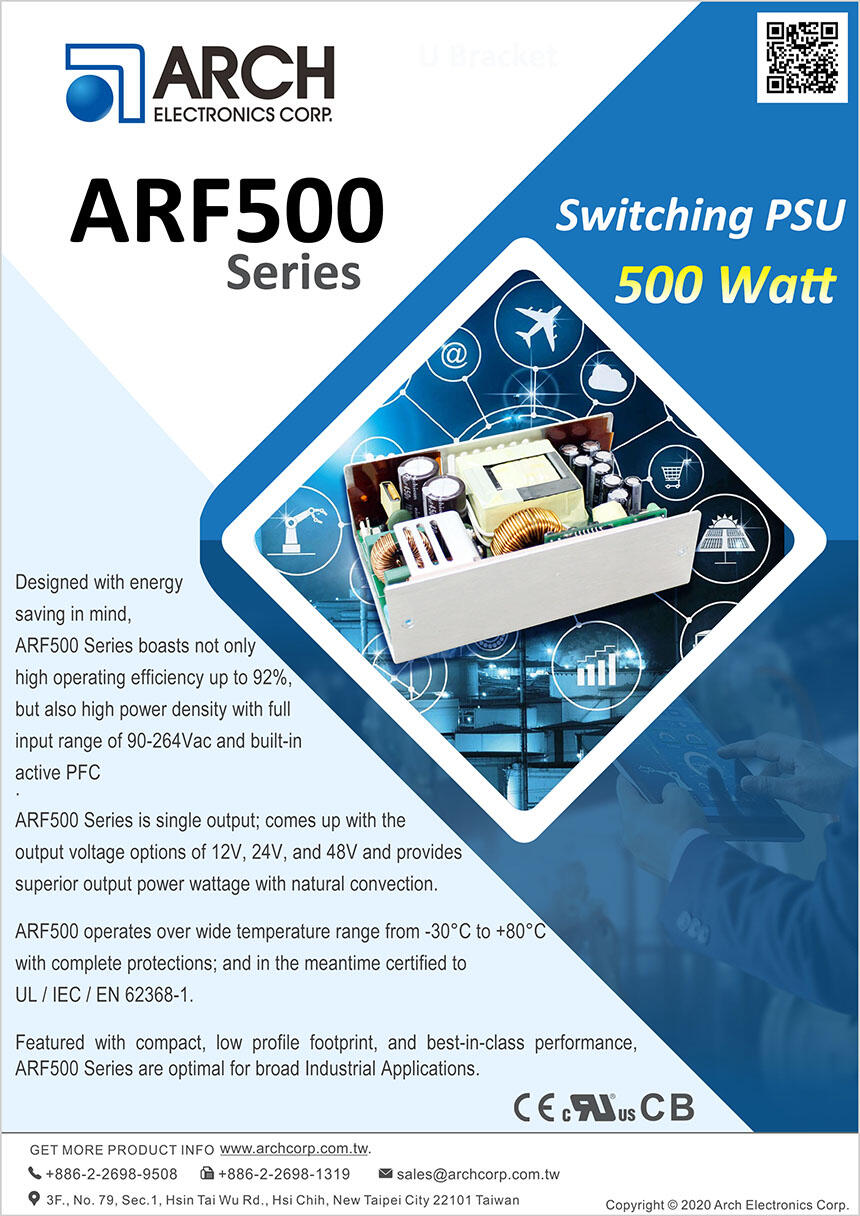

ARF500
Series
AC-DC ITE Power Supplies
available for N. America area
500 Watt
Size: 5" x 3"
I/P: 90~264VAC
O/P: 12, 24, 48 VDC
I/O Isolation: 4000VAC
Operating Temp: -30~ +80°C
KEY FEATURES
| ◆ | U Bracket / Enclosed Package | |||
| ◆ | Universal Input Range 90-264VAC | |||
| ◆ | High Efficiency up to 92% / 91.5% | |||
| ◆ | Low Leakage Current < 0.1mA / 264 VAC (Touch Current) | |||
| ◆ | Wide Operating Temperature: | |||
| ◆ | Cooling by free air convection | |||
| ◆ | Wide Operating Temperature from -30°C | |||
| ARF500U:-30°C~+80°C with derating | ||||
| ARF500E:-30°C~+70°C with derating | ||||
| ◆ | I/O Isolation: 4000VAC | |||
| ◆ | Operating Altitude 5000M | |||
| ◆ | Active PFC Function | |||
| ◆ | Built-in 12V / 0.3A Auxiliary Output (ARF500U) | |||
| ◆ | Standby 5V@1A with Fan, @0.4A without Fan (ARF500U) | |||
| ◆ | Standby 5V@1A (ARF500E) | |||
| ◆ | Safety Approval to UL / IEC / EN 62368-1 | |||
| ◆ | 3-Year Product Warranty | |||
ELECTRICAL CHARACTERISTICS
| Package | ||
| ARF500U: | U Bracket | |
| ARF500E: | Enclosed | |
| Dimensions | ||
| ARF500U: | 130.0 x 83.0 x 40.0 mm 5.12 x 3.27 x 1.57 inches | |
| ARF500E: | 130.0 x 83.0 x 62.3 mm 5.12 x 3.27 x 2.45 inches | |
| Line Regulation | ±1% | |
| Load Regulation | ±1% | |
| Ripple and Noise | 12S:160mV 24S:240mV 48S:480mV | |
| Agency Approvals | UL 60950-1, UL / IEC / EN 62368-1 | |
| EMI | EN 55032 Class B | |
| EMS | EN 55035 | |
| ■ | Please refer to the PDF file published on the web site as the final version. | |||
| ■ | We reserve the right to make alterations in the product materials and specifications without prior notification and consent to improve reliability, function or design or otherwise. | |||
